Product Name

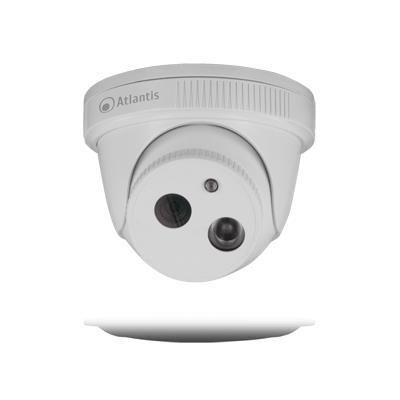

NetCamera 820AD
Code
A11-820A-D
Resolution
2 MegaPixel
Type
Dome
Protocol
Onvif, I8S, I8, RTSP
Lan Interface
RJ-45 Ethernet 10/100 Base-T
PoE
N/A
Chipset
SONY IMX222+Hi3516C
Sensor
1/2.8" CMOS Sony
Min Illumination
0 LUX with IR ON
IR Distance
1 Led Array (IR 850nm) Up to 15mt
IR Filter
Mechanical IR Cut Filter (light Sensor)
LENS
3.6 mm fixed lens (65°Hz)
Streaming
2 [FrameRate/Bandwith/Unicast/Multicast]
Resolution
Main Stream:• HD1080P(1920x1080)@25fps • HD720P(1280x720)@25fps • HD1080P(960x544)@25fps • D1-P(720x576)@25fps
Sub Stream: • D1-P(720x576)@25fps • VGA(640x480)@25fps • Q720P(640x360)@25fps • QVGA(320x240)@25fps • CIF(252x88)@25fps • QCIF(176x144)@25fps
Video Parameters
Horizontal/Vertical Mirror, 180° Rotation, Denoise (4 level),
Exposure Control (automatic, manual), 3D Noise
Access
Multiple user access levels with password protection
Max Users
- 5 simultaneous users
- Unlimited number of users using multicast
- 2 differnt users (Admin, Guest)
Network
NTP, DynDNS, PPPoE, SMTP, DHCP, UPnP
Management
WEB(ActiveX), I8S(NVR), ONVIF(CMS, NVR), I8(CMS,NVR)
Remote View
WEB(ActiveX), Onvif CMS(DMZ), I8(CMS), App(TMEye+for Android, IOS), RTSP
Alarm
Mail(SMTP), CMS
Advanced
• Scheduled AutoReboot
• Motion Detection (5 Level)
• Tampering Detection (3 level)
CMS (x Windows)
CMS (up to 16 cameras)
Waterproof Rating
Indoor
Dimensions (DxH)
120 x 95 mm
Weight
260 g
Temperature Range
-10°C ~ 40°C RH 85% Max
Power Supply
DC12V, 1000mA
Housing
Plastic
