Ordering P/N

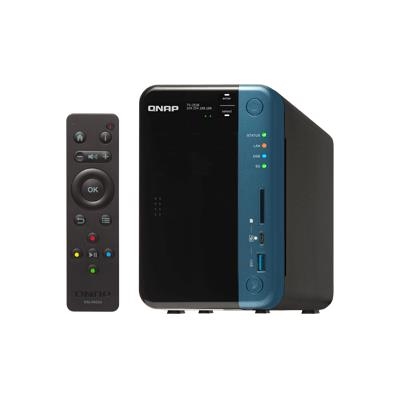

TS-253B-4G
CPU:
Intel® Celeron® J3455 quad-core 1.5 GHz, up to 2.3 GHz
Encryption Accleration:
Si (AES-NI)
Graphics:
Intel® HD Graphics 500
System memory:
8GB DDR3L
(2 x 4GB)
Maximum Memory:
8GB
Total Memory Slots:
2 x DDR3L SODIMM slots
(For dual-DIMM configuration, you must use a pair of identical DDR3L modules.)
Drive:
Hot-swappable 2 x 3.5"/2.5" SATA 6Gb/s HDD/SSD
GbE LAN Port:
2 x RJ45 Gigabit LAN port
10GbE LAN Port:
Optional 10 Gigabit LAN port via a PCIe expansion card
USB 3.0 Port:
5 x USB 3.0 Type-A ports
USB QuickAccess:
USB Type-C
PCIe Slot:
1 PCIe 2.0 x2 slot
HDMI Port:
2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz
Audio Input:
2 x 3.5mm microphone input jacks
Audio Output:
speaker, 3.5mm line out jack
Display:
0.96” monochrome OLED
LED Indicators:
Status/Power, LAN, USB, Drives, SD card, USB QuickAccess
Buttons:
Power, USB copy, Reset, Capacitive touch buttons (select, enter)
Infrared Receiver:
Si supplied with a QNAP RM-IR004 remote control (compatible with RM-IR002 remote control)
SDXC Card Reader:
Si
Other Interfaces:
Kensington security slot
Dimension (HxWxD):
168 x 105 x 226 mm
Weight:
1.66 kg
Sound Level*:
Operating low speed: 16.7 dB(A)
Operating Temperature:
0 ~ 40˚C (32˚F ~ 104˚F)
Relative Humidity:
5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Consumption:
HDD sleep: 13.07W
Typical Operation:
20.42W
Power Supply:
65W AC adapter, 100-240V
Fan:
1 x 7 cm
Package Contents:
NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord, 2.5" drive screw kit, RM-IR004 remote control
