VENTOLA X CPU COOLER MASTER MAP-T6PN-218PC-R1 MASTERAIR MA610P INTEL LGA775/2066 AMD AM4/FM2+ 12X12X2.5CM 35DBA 600-1800RPM 4P

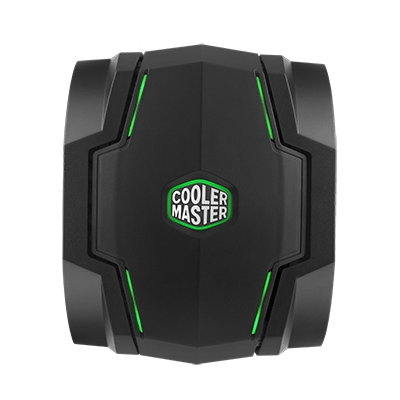

The MasterAir MA610P is directly descended from the MasterAir Maker 8. It is designed for gamers and overclockers who demand ultra-low temperatures, aggressive RGB lighting, and total control over their air cooling. The Continuous Direct Contact 2.0 Technology increases the surface area of the copper base by 45% while a total of 6 heatpipes efficiently conducts heat away from the CPU. The push and pull configuration of dual MasterFan MF120R RGB allows high-pressure cooling at low dBA. With the Wired RGB LED controller, this cooler is ready for more than 16.7 million colors and effects combinations. The MasterAir MA610P is the ultimate air cooler for those who want to maximize their PC cooling performance without the use of liquid cooling.

Features:
- CDC 2.0 – Excellent heat dissipation with 6 heatpipes and Continuous Direct Contact 2.0 technology.
- Dual MasterFan RGB – Push and pull dual MasterFan MF120R RGB fans to maximize CPU cooling with plenty of color while doing it.
- Unique Top Cover Design -  Creative RGB LED logo design with additional light strips on the top cover for aesthetic customization.
- Wired RGB LED Controller – The Controller allows customizable colors and effects for the fans and top cover with just the touch of a button.

Product Name M
asterAir MA610P

Product Number
MAP-T6PN-218PC-R1

CPU socket*
Intel® LGA 2066/2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 /775
AMD AM4 / AM3+ / AM3 / AM2+ /AM2 / FM2+ / FM2 / FM1

Dimensions
122.3 x 112.8 x 166.5 mm

Heat Sink Dimensions
116 x 60 x 158 mm

Heat Sink Material
6 Heat pipes / Direct Contact / Aluminum Fins

Heat Sink weight
616g

Heat Pipe Dimensions
Φ6mm

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
600-1,800 RPM (PWM) ± 10%

Fan Air Flow
53.38 CFM ±10%

Fan Air Pressure
1.65mm H₂O ± 10%

Fan MTTF
40,000 hours

LED color
RGB ready

Fan Noise Level
35 dBA (Max)

Fan Connector
4-Pin

Fan Rated Voltage
12 VDC

Fan Rated Current
0.30A

Fan Safety Current
0.37A

Fan Power Consumption
4.44 W

Warranty
2 years

EAN code
4719512063408

UPC code
884102036088

Net weight (Kg)
1.12

Gross weight (Kg)
1.36

Carton dimension (L x W x H)
16.3x13.8x23.4
