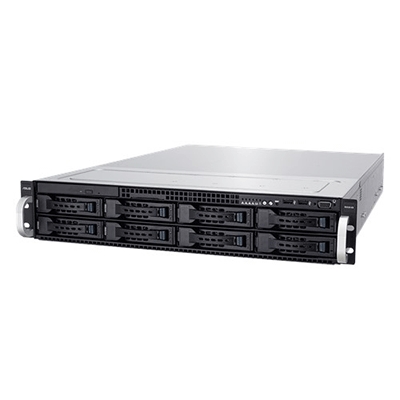

*********** - ATTENZIONE TRATTASI DI BAREBONE: non sono presenti nè CPU - nè Memoria - nè Storage *********
Specifications
Processor / System Bus
2 x Socket P (LGA 3647)
Intel® Xeon® Scalable Processors Family (150W)
*Refer to support page for more information
UPI (10.4 GT/s)
Generation
E9
Core Logic
Intel® Lewisburg PCH C621
Memory
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS
Memory Type :
DDR4 2666/2400 RDIMM
DDR4 2666/2400 LRDIMM
DDR4 2666/2400 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots
2 x PCI-E x16 (Gen3 x16 link), LP, HL
4 x PCI-E x8 (Gen3 x8 link), LP, HL
1 x OCP 2.0 Mezzanine (Gen3 x16 link)
Storage
SATA Controller :
Intel® C621
11 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector)
2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCI-E Gen3 x4 link)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)(Support Software RAID )
Optional kits Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support
HDD Bays
8 x 2.5" or 3.5" Hot-swap Storage Device Bays (4 x NVMe Supported)
2 x 2.5" Hot-Swap Storage Device Bays (Rear) (SATA HDD/SSD Only)
2 x M.2 (2280, 2260, 2242) (Support SATA/PCIe M.2,SATA/PCIe RAID)
Auxiliary Storage FDD/CD/DVD
1xslim-type Optical Drive Bay
Options：No Device/DVD-RW
Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic
Aspeed AST2500 with 64MB VRAM
Front I/O Ports
2 x USB 3.0 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
Switch/LED
Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED
* LAN3-4 for Mezzazine card use
OS Support
Windows® Server 2016
Windows® Server 2012 R2
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Fedora
Please find the latest OS support from http://www.asus.com/
Management Solution
ASUS Control Center(Classic)
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CE, C-Tick, FCC(Class A)
Dimensions
615mm x 444mm x 88mm (2U)
Form Factor
2U
Weight
Net Weight : 19.7KG
Gross Weight : 27.97KG
Power Supply
1+1 Redundant 800W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 9.4 A/4.72 A, 47-63 Hz, Class I
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% ( Non condensing)
