Product Name

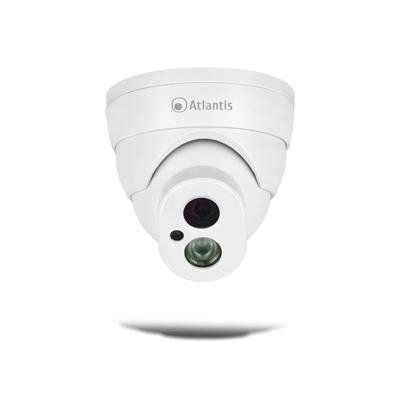

NetCamera 905A-DP
Code
A11-905A-DP
Resolution
4 MegaPixel
Type
Dome
Protocol
Onvif, I8S, RTSP
Lan Interface
RJ-45 Ethernet 10/100 Base-T
PoE
YES Mode A
Chipset
Omnivision Hi3516D+OV4689
Sensor
1/3' CMOS
Min Illumination
0 LUX with IR ON
IR Distance
1 LED Array (IR 850nm) Up to 12mt
IR Filter
Mechanical IR Cut Filter (light Sensor)
LENS
4.0 mm fixed lens (55° Horizontal)
Streaming
2 (codec=H.264 or H.265) [FrameRate / Bandwith / Unicast / Multicast]
Resolution
Main Stream:• 4MP (2592x1520)@20fps • 3MP (2048x1520)@25fps • HD1080P(1920x1080)@25fps
Sub Stream: • D1-P(720x576)@25fps • VGA(640x480)@25fps • Q720P(640x352)@25fps • QVGA(320x240)@25fps
Video Parameters
Horizontal/Vertical Mirror, 90°/180°/270° Rotation, Color Mode (Normal/Bright/Nature), WDR SW (3 level), Defogging (3 Level), Sharpness, Slow Shutter, Exposure Control (automatic/manual), Gamma, Anti-Flicker (50Hz, 60Hz, Close)
Access
Multiple user access levels with password protection
Max Users
- 5 simultaneous users
- Unlimited number of users using multicast
- 2 differnt users (Admin, Guest)
Network
NTP, DynDNS, PPPoE, SMTP, UPnP
Management
WEB, I8S (NVR), ONVIF (CMS, NVR)
Remote View
WEB (ActiveX), Onvif CMS, i8(CMS), RTSP
Alarm
Mail(SMTP), CMS
Advanced
• Scheduled AutoReboot
• Motion Detection (5 Level)
• Tampering Detection (3 level)
CMS (x Windows)
CMS (up to 16 cameras)
Waterproof Rating
IP66
Dimensions (DxH)
90 × 100 mm
Weight
380 g
Temperature Range
-10°C ~ 40°C RH 85% Max
Housing
Metal
Power Supply
DC12V, 1000mA max or Using PoE Mode A
